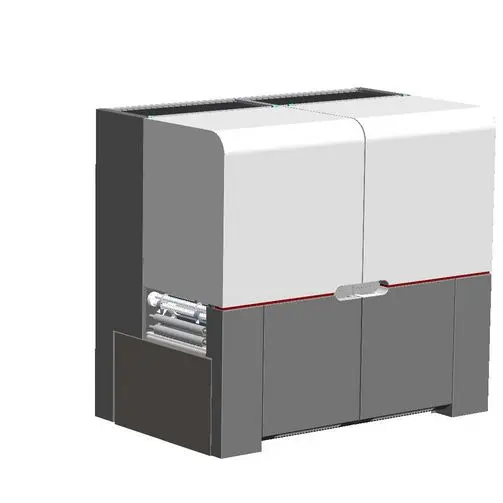

MCR-1000

Compact Inkjet Printer

Modular Compact Printer for Highspeed Variable Data Printing

As a modular system, the unit can be configured for 1-up and 2-up documents and for simplex or duplex printing applications. The system can incorporate up to 16 wide format print heads including high performance dryers with fully automatic controls. The web is driven by servo motors which ensures the system accelerates smoothly whilst maintaining accurate web tension.

Multitude of applications

The MCR-1000 serves as a robust solution across a variety of sectors, where efficiency, dependability, and cost-effectiveness are paramount.

This versatile product has found applications in book printing, the production of transactional documents, security printing (e.g. MICR) and the printing of flexible materials.

The MCR-1000 can be fitted with Matti print engines that incorporate inkjet printheads from different suppliers, ensuring a seamless integration of the chosen ink with the substrate.


  • The MCR-1000 is a versatile printing system that can be equipped with all common printheads for different types of applications.

  • Maximum speed: 1000 fpm (305 m/min)
  • Web width: 8 – 20.5” (200 – 520 mm)
  • Weight of material: 60 - 180 g/m^2
  • Web tension: 5 - 30 kg (10 - 60 lbs)
  • Input/Output: Slack web
  • Electrical spec. transport: 3 x 400 / 480 V; 50 / 60 Hz (+/- 5%); 16A (D-type)
  • Interface: IPDS via Ethernet, Type 1 for peripherals
  • Dimensions per module: 850 x 1100 x 1200 mm (33" x 43" x 47")
  • Weight per module: 350 kg
  • Noise level: 76dB(A) peak level
  • Ambient temperature: 15 - 29°C (80 - 85 deg F)
  • Relative humidity, operating: 15 - 29°C (80 - 85 deg F) @ 30 - 60% RH
  • Agency compliance: CE; UL; CSA; ROHS

The MCR-1000 can be populated with Matti Printengines, delivering:

  • Mono
  • CMYK
  • Security Inks (MICR, Fluorescent, IR-Absorbing, etc.


💡

Works well together with our Winders
