Monojet Imprinting Solution
High performance industrial variable data printing
Introduction
The Matti Mono Imprinting solution offers a cost-effective, innovative and reliable solution suitable for many marking applications.
Each solution can be customised to meet specific business needs. The Monojet 108 and 216 are full-featured standalone economic solutions, designed for web speeds of up to 300 meters/min and offering inks for coated and uncoated stocks. The 3 level greyscale allows for high-quality picture reproduction.
One base unit can drive up to four 4.25" or 8.5" printheads. The base unit can drive two Matti NIR / IR dryers by means of a driver module that can be installed. This ensures optimal communication between the printheads and the dryer which guarantees the best possible efficiency.
Our Imprinting Systems bring hybrid printing to the next level. They can be easily integrated into web presses, sheet presses or large flatbed systems.
The solution provides inks to print on coated, uncoated and flexible materials. Specialty inks are available to print MICR or fluorescent security features.
Please note:
For specialised inks: to gain valuable insights into jetting performance, we invite you to explore our "Ink Performance Testing" services, designed to facilitate a swift and confident operational launch.
Complete System - Match your requirements

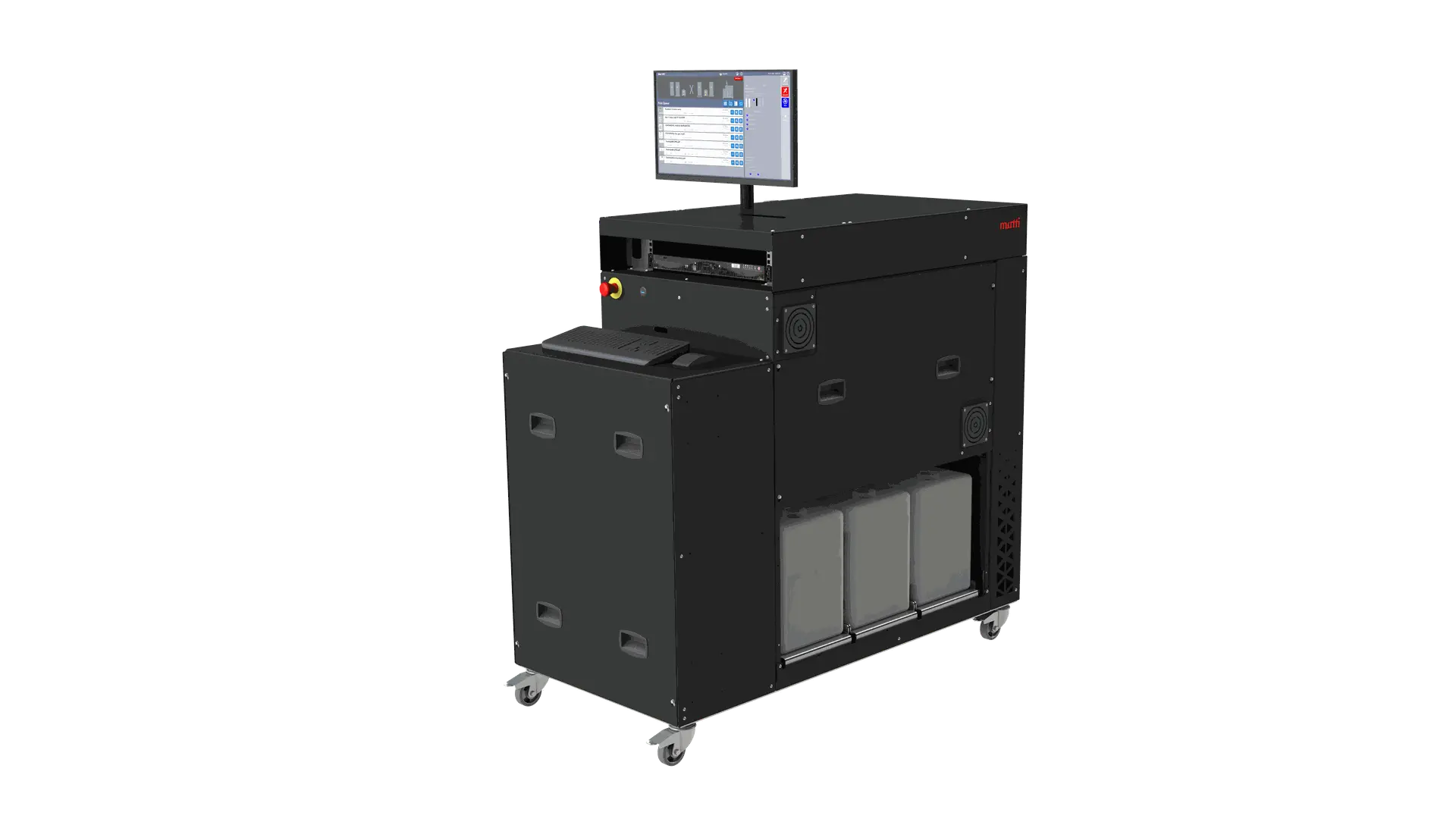

The heart of the system: The S-Box
The S-Box sources the ink, electrical power and data to the attached printbars. It also contains the digital frontend for the operator, where the system is controlled and supervised and where the print queue is managed.
Optionally, the S-Box can drive the Matti NIR and IR dryers - up to two dryers may be attached.
The S-Box provides space for ink and cleaner fluids.

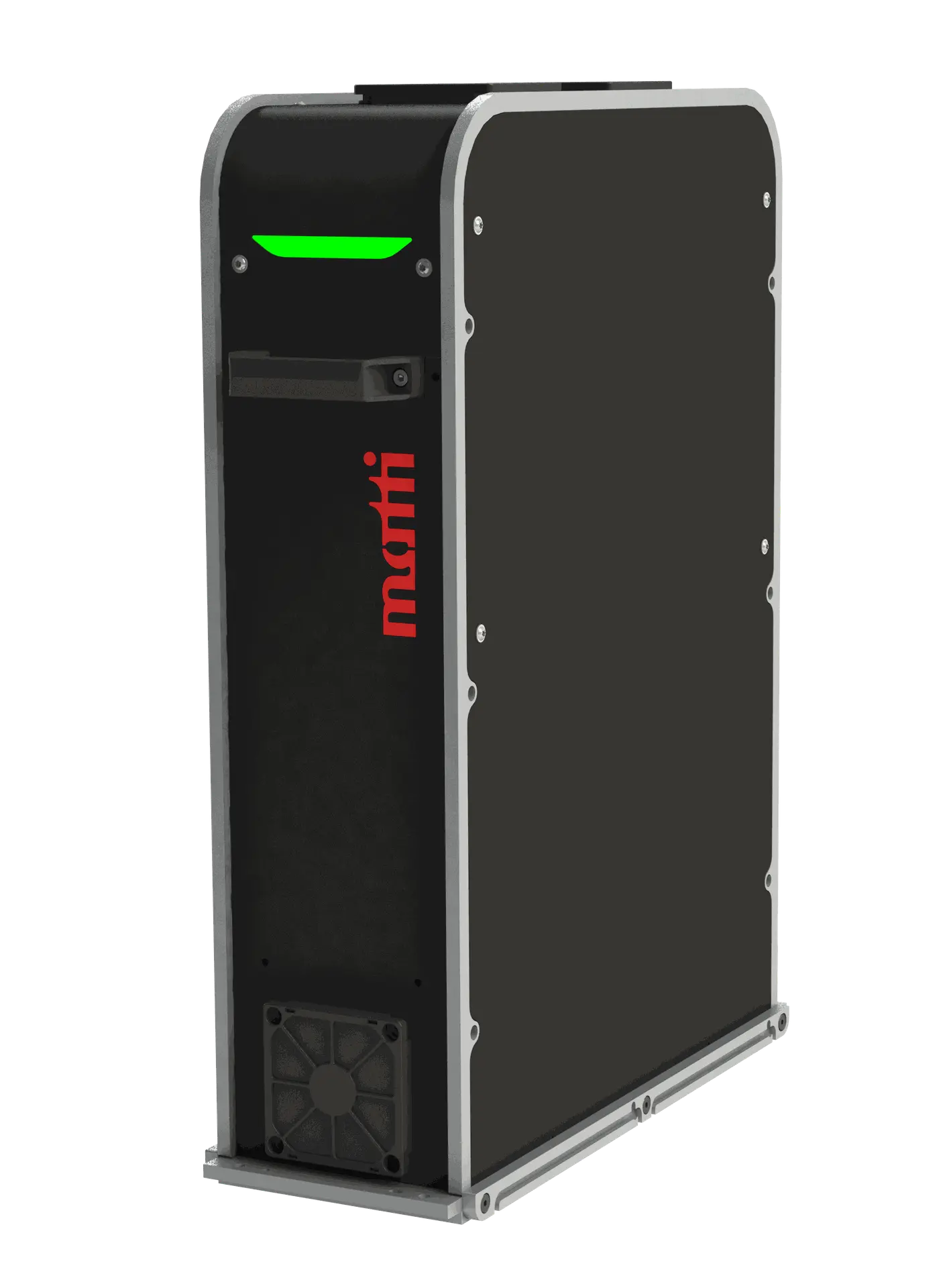

Flexibility designed in: The Printbars
The Monojet printbars are compact and versatile, yet they are of industrial build quality. All fluid and electrical connections are conveniently placed on the backside with easy service access. Two handles allow carrying the unit - ideal for dynamic environments where many different jobs are run.
The ink supply system is located inside the compact design and is located close to the inkjet heads, allowing for best and tight control of ink temperature and pressure control.
The printbar can be populated with either a single or multiple inkjet modules, allowing for widths of up to 2'000mm or more (upon request).

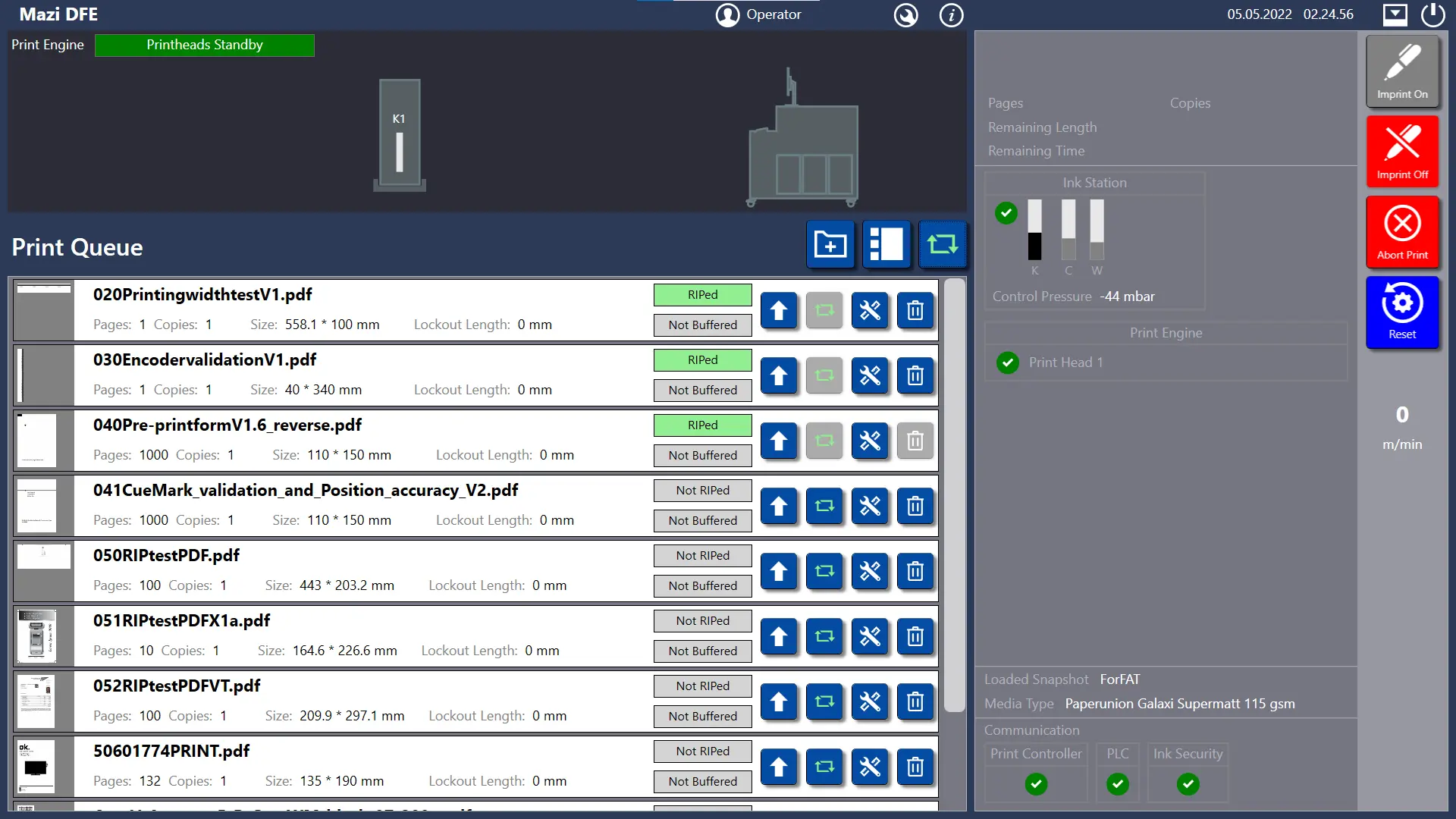

Digital Front End (DFE)
The digital front end orchestrates all data processing functions for the solution. It facilitates a range of data entry options, including the importation of PDFs and direct integration with data streams that are accessible within the organization.
Comprehensive Integration with M-Tower and Dryers
For maximum efficiency, the Monojet systems can be ideally combined with the M-Tower, enabling seamless replacement of older toner-based printers. This integration provides simplex and duplex operations with additional options for combining infrared (IR), near-infrared (NIR), or UV drying technologies to achieve high-quality results.
